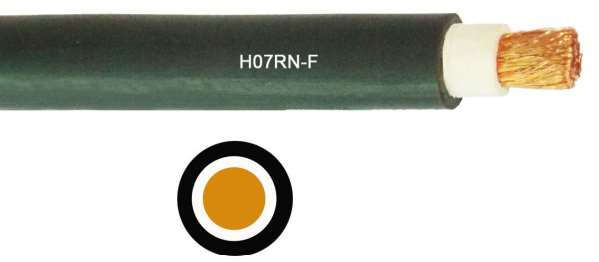

RUBBER CABLE (H07RN-F)

RUBBER CABLE (H07RN-F)

APPLICATION: Rubber insulated flexible cable with poly chloroprene sheathing resistant to mechanical stress, oils, chemical corrosion and weathering. For installation in dry, damp or wet environments, in the open air, in workshop with explosive atmospheres.

For connections liable to moderate mechanical stress, e.g. industrial or agricultural workshop apparatus, large boilers, heater plates, portable lamps, electric tools such as drills and dick saws, electric appliances, portable motors and generators on building sites or farms, also for fixed installations along floors or shelving on temporary job sites and in cabin accommodation for connecting structural elements in lifting apparatus, machinery etc.

Suitable for applications up to 1000v for adequately protected fixed installation (inside pipes or equipment)
as well as for rotor connection to lifting apparatus motors.

Category:

CONSTRUCTION:

CONDUCTOR: Bare flexible copper, Class 5 acc. to IEC 60228, (HD383, CEI 20-29).
INSULATION: E14 quality rubber accordingly to CEI EN 50363 (CEI 20-11).
INNER SHEATH: EM3 quality rubber compound acc. to CEI EN 50363 (CEI 20-11).
SHEATH: EM2 quality rubber compound acc. to CEI EN 50363 (CEI 20-11).

COLOR CODING:

CORES: 2-core- Brown, Blue
3-core- Brown, Blue, Green / Yellow
4-core- Brown, Black, Grey, Green / Yellow
5-core- Brown, Black, Grey, Blue, Green / Yellow
OUTER SHEATH: Thermosetting Rubber (Type EM2) Black Color.
