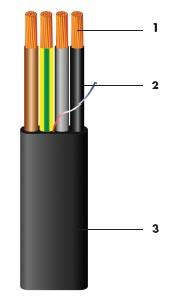

STRUCTURE AND SPECIFICATION:

• CONDUCTOR : Bare copper strand (IEC 60228, Class 5)
• INSULATION : PVC
• CORE IDENTIFICATION: Acc. to VDE 0293-308 up to 5 wires coloured, from 6 wires black with white numerals
• OUTER SHEATH: PVC – RAL 9005 Black.
• STANDARD: Acc. to EN 50214
• VOLTAGE RATING:
  • ≤ 1.00 mm²= 300/500 V (H05VVH6-F)
  • ≥ 1.50 mm²= 450/750 V (H07VVH6-F)
• OPERATING TEMP :
  • Fixed: -40 °C / +70 °C
  • Moved: -25 °C / +70 °C
• FLAME RETARDANCE: IEC 60332-1

BLF srl, established in 1982, is a modern, dynamic and efficient company operating on a surface of
around 10000 m2. BLF is very attentive towards customers’ requirements and is willing to cooperate
in order to find the best possible solutions.

Cables Manufactured:

• SILICONE CABLE (FG4/2). (SIF – SIAF – GS)
• SILICONE + FIBER GLASS SLEEVES (FG4T2/2).
• MULTICORE SILICONE CABLE (FG4OG4/2).
